ANR room 101A with all chairs forward facing the front of the classroom in rows.

Agriculture and Natural Resources Building 101A – Departmentally-Owned Classroom

Room Technology Updated: Summer 2024

Control Panel in this room – the control panel in this room is a specific design. It is similar to the one shown but not exact. We are working on getting better instructions for the control panel in this room.

This is a departmentally-owned room. OIT does not support the computer in this classroom. OIT can offer some assistance with learning the technology in this classroom, but because this is a departmentally-controlled space, we are not able to offer full assistance. Information on this page may not be completely accurate and may be outdated due to department updates.

Your Room Contains

Classroom Resources:
Instructor Resources:
  • Control Panel: Style 1 USB-C
  • Cynap
  • Cables:
    •  HDMI cable(s)
Instructor Screens:
  •  Podium Monitor(s)
  •  Confidence Monitor(s)
Audience Screens:
  • 1 Ceiling Projector(s)
Audio Visual:
  • 2 Lapel Microphone(s)
  • 2 Handheld Microphone(s)
Note: Departmentally-Controlled Classroom

How To...

decorative control panel diagram

Display on Screen:

  1. Tap Turn System On
  2. Tap Screen
  3. Choose the device you wish to display on the screen such as a laptop connected to HDMI 1 or USB-C, the Blu-ray player, Doc Cam, or Cynap.
    Note: the Blank Screen option will stop the currently selected image from projecting.

When Finished

  1. Tap Home
  2. Choose Turn System Off
Control Panel main page with buttons for Turn System On, Audio Only, and Turn System Off
Step 1
Step 2-3

These instructions will help you to connect a device to the Cynap.

Go to our Cynap page in the Technology Training section for more advanced features of using Cynap.

Connecting Your Laptop Wirelessly:

  1. Connect your laptop.
    • On Windows:
      1. Use the Windows Key + K Key to bring up the Project menu.
      2. Choose Connect to a wireless display.
      3. Choose the Cynap for your room.
    • On MacBook:
      1. Select the Airplay icon in your menu bar to see available devices.
      2. Select the Cynap for your room.
  2. Enter the 4-digit code that appears at the top of the Cynap screen on your laptop. Your laptop will appear on the Cynap screen.

Connecting a Wired Device:

Use these steps to display a device that is hooked up using an HDMI cable; this includes the document camera or a laptop.

1. On the Control Panel under the Cynap Input menu, select the device you want to display from the Cynap onto the projector. You can select from your document camera, laptop connected with HDMI or VGA, or Blu-ray player.

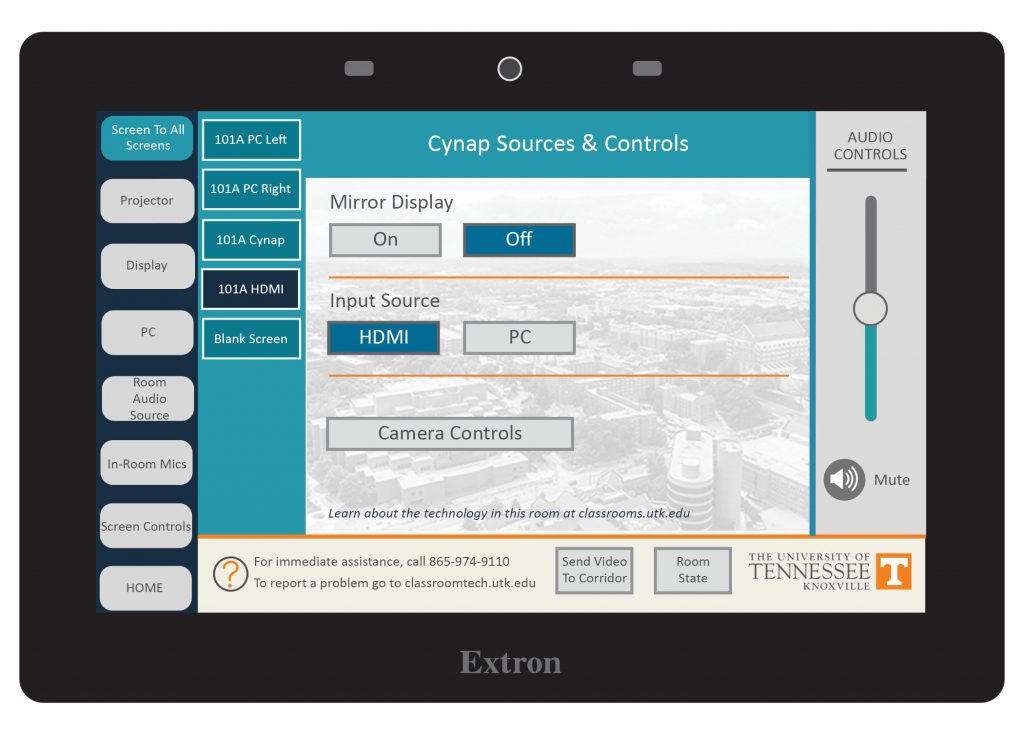

Note: Your control panel may look different than the image on the right.		This image has an empty alt attribute; its file name is MicrosoftTeams-image-1.jpg
2. On the Cynap screen, tap the screen and select the [ + ] button.
3. Then, select Cynap Input to add the device previously selected on the Control panel.
4. Your selected device will appear on the Cynap screen. If you are not in mirror mode, where the instructor screen is mirrored on the main screen, you can send the image over to the main projector screen by tapping the bottom menu of the window on the Cynap and choosing the Send to Projector button.
Note: OIT recommends using Mirror mode to make things simpler. If you use Mirror mode, make sure you go to your home screen on the control panel and turn the system off, then turn the system back on at the beginning of class. This will reset your PIN code for Cynap so that previous users will not have the PIN code.


Lapel-style microphones are called Lavalier mics. Lavalier microphones are clipped to your shirt about 3-6 inches below your chin and come with a battery pack you can clip to a belt or slide in a pocket.

Tip: Adjust sound levels by going to the tab for in-room mics or microphones on the control panel. You can adjust the sound level for when you use Zoom or Panopto by going to the tab for Zoom/Panopto mic.

Each mic has been programmed to work with the audio system in your classroom. These mics will not work in other rooms because they have not been set to work with another room system and may also be incompatible with some of the equipment in that room. Please contact OIT if you need additional mics in your classroom.

Tip: when you switch the battery pack on, if the light is green, the battery charge is good. If the light is red, the battery is getting low.

To change the battery on this microphone, look for the small tab either on the side or bottom of the battery pack. Mics will take either D or AA batteries. These batteries should be available in the cable drawer of your podium. If you do not have batteries and need some immediately, contact the emergency line of the OIT HelpDesk at 865-974-9110. If you wish to just report that the room needs batteries for next time, please contact the main number of the OIT HelpDesk at 865-974-9900.


Handheld microphone

Handheld mics can be used by audience members as a to be heard better in the classroom or during a Zoom meeting or Panopto recording. Depending on the set up of your particular room, the mic may only be used either in the room or on Zoom or Panopto. Check your control panel to see what mics are available in Zoom or Panopto by choosing the Zoom/Panopto option. To check what mics are available over your classroom speakers, check the Room Audio button on the control panel.

If your mic needs batteries, unscrew the microphone from the base to add batteries. Mics will take either D or AA batteries. These batteries should be available in the cable drawer of your podium. If you do not have batteries and need some immediately, contact the emergency line of the OIT HelpDesk at 865-974-9110. If you wish to just report that the room needs batteries for next time, please contact the main number of the OIT HelpDesk at 865-974-9900.


This room is a departmentally-controlled classroom. OIT may not be able to completely support this room because it is not a campus-hosted classroom. We have provided information as to what is in the classroom to the best of our knowledge.
